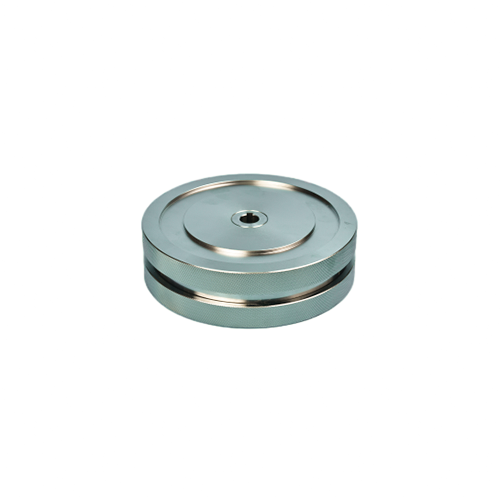

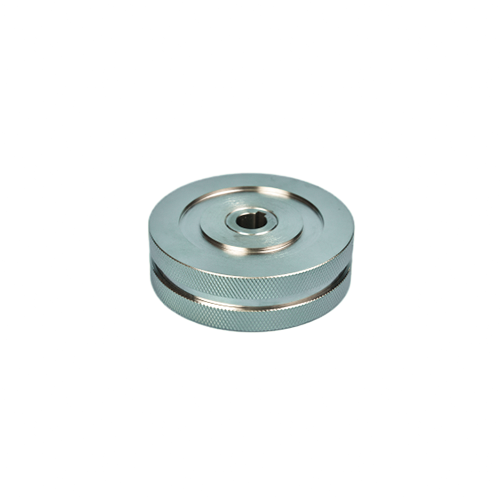

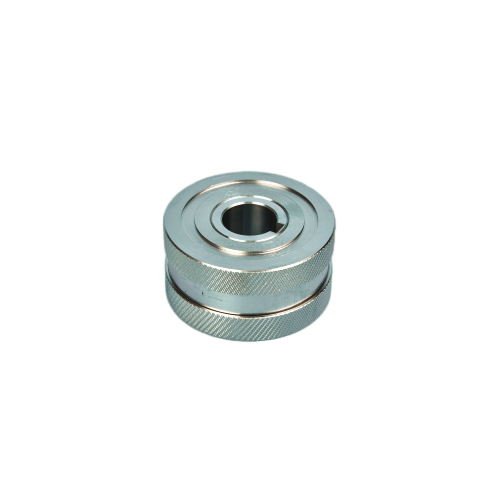

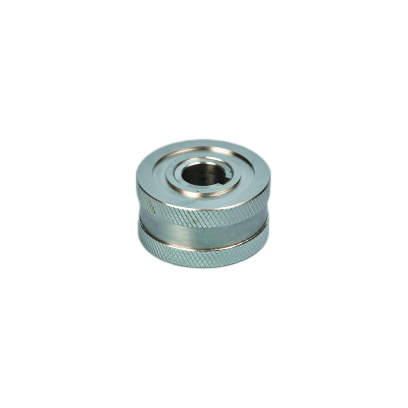

The magnetic climbing wheel usually refers to a key component of a robot or device that can move on a vertical metal surface or upside down on a metal structure. This technology is mainly used in the scenario where large metal structures such as Bridges, ships, and wind turbine towers need to be inspected and maintained

Parameter：（please contact customer service for more parameters）

Working principle：

The heart of the magnetic climbing wheel lies in its powerful magnetic adsorption system, which allows it to firmly adhere to metal surfaces. Depending on the design, the magnetic adsorption system can be based on permanent magnets, electromagnets or giant magnetostrictive materials. These devices provide the necessary suction to overcome gravity and ensure that the equipment does not fall off the working surface

Magnetic climbing arm wheels can be divided into the following types：

● Permanent magnet type: This type of magnetic wheel uses a permanent magnet to provide adsorption force. They do not require an external power source to remain attached to the metal surface, so they have the advantage of energy saving. However, its adsorption force is fixed and difficult to adjust dynamically.

● Electromagnetic type: The electromagnetic type magnetic wheel generates a magnetic field through the current, so as to achieve the adsorption of the metal surface. This kind of wheel can adjust the current strength according to the need to change the adsorption force size, high flexibility, but the need for continuous power supply to maintain the adsorption state.

● Giant magnetostrictive: This is a technique based on the properties of giant magnetostrictive materials, when a magnetic field is applied, the material will deform, which will create adsorption forces. Although this technology is still in the research and development stage, it has the potential to provide more efficient and compact designs.

● Hybrid type: Magnetic wheel that combines two or more of the above technical features. For example, some designs may use both permanent magnets and electromagnets to optimize adsorption performance in different situations. For example, only permanent magnets can be used when strong adsorption forces are not required, and electromagnets can be activated when stronger adsorption forces are required.

● Inflatable magnetic adsorption wheel: This wheel has a hollow structure inside, which can adjust the contact pressure between the tire and the metal surface by inflating, thereby indirectly affecting the adsorption effect. This design ADAPTS to uneven surfaces and helps protect tires from damage.

Application field：

● Industrial inspection: such as inspection of the inside of oil storage tanks, chemical plant reactors and other hard-to-reach areas.

● Building maintenance: can be used for high-rise building exterior wall cleaning, maintenance and other work.

● Energy industry: such as wind turbine components inspection and maintenance.
